Distribution

The only officially accepted way to add apps to an iOS terminal is to use Apple's App Store

Apple has total control over which apps are accepted on the store
- delay between submission and availability
- Apple guidelines are strict and sometimes difficult to match
- guarantees a minimal quality of apps
developper license (99$ / year) necessary to submit an app
free developper account sufficient to develop and install apps on personal devices
developpers receive 70% of the price of the sold app

About this Lecture

iOS development is a vast topic

many elements cannot be addressed in this lecture (including important ones)
even with more time, one never fully knows all about iOS programming
- hundreds of existing classes
- thousands of methods and attributes
- best way to learn is to look for examples, ask questions and read the documentation
the API, SDK and language evolve quickly
- examples and discussions on the Internet are already outdated
- this lecture is also already outdated
most elements are interconnected
- no natural order to present things
- examples require to use some elements before explaining them

Generalities

Developping for an embedded system

cross-compiling
stronger contraints
- memory
- energy
- CPU

Conception based on user interface

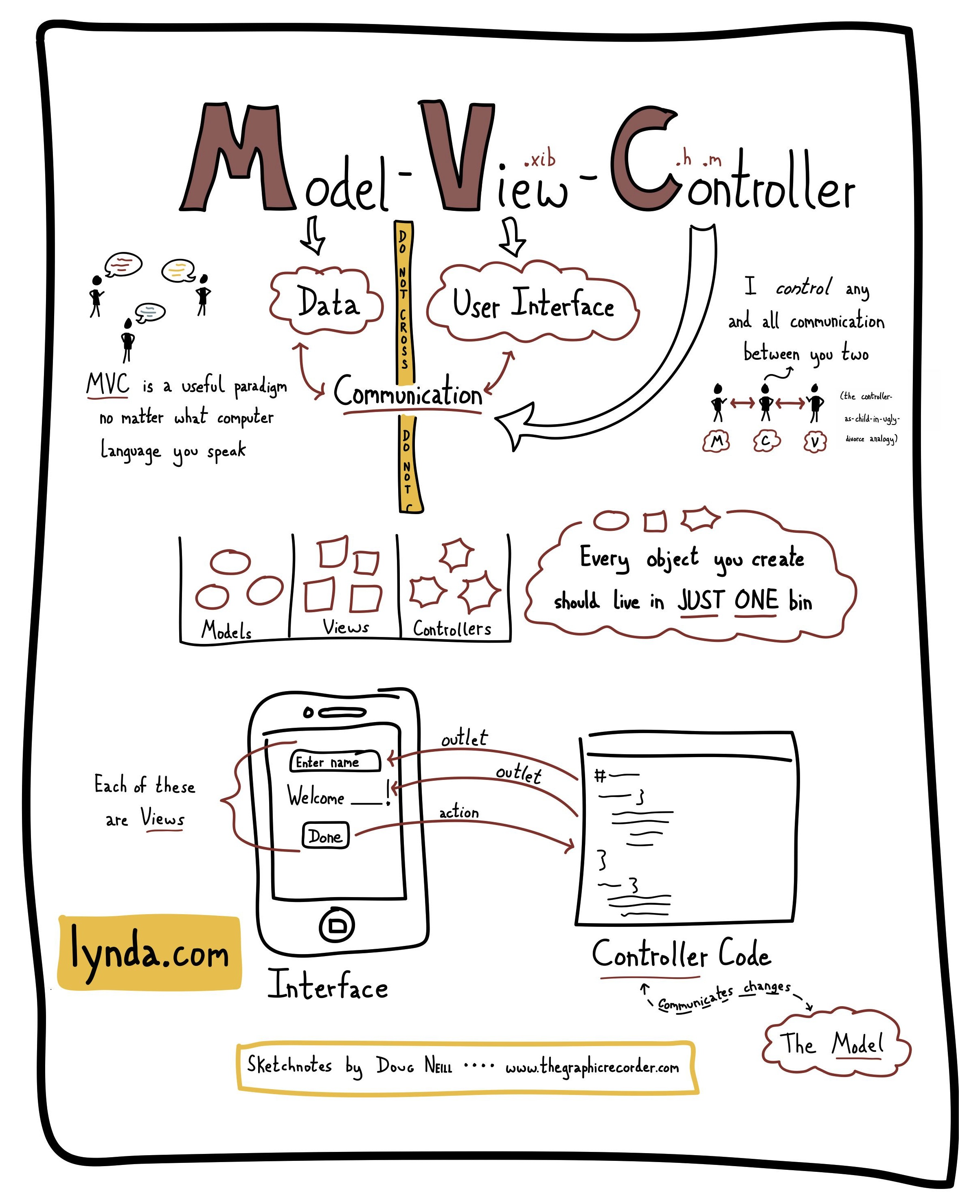

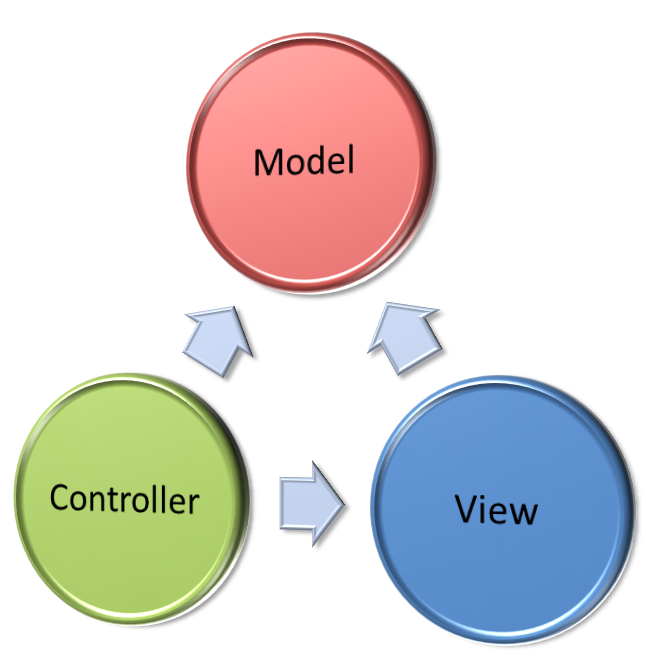

Model-View-Controller architecture
Reactive programming
Event-based programming

iOS vs. Android

Developper

Apple

Programming language

Swift and/or Objective C
some C and C++

Development environment

XCode

Development kit

iOS SDK

Developper

Google

Programming language

Java
some C++
(Kotlin, possibly Swift in the future)

Development environment

Eclipse

Development kit

Android SDK

Constraints

Limited resources

Memory
- Beware of memory leaks
- Java (Android): garbage collector
- Swift / Objective C (iOS): Automatic Reference Counting (ARC)
Energy
- Some activities are very demanding (GPS, camera, etc.)
- Avoid inefficient algorithms (CPU drains battery)

Handle urgent events

Low memory alert
Low battery alert
Phone call interruption

Other Constraints

User interface

Simple and convenient to use
Should be reactive
Should fit with the OS and other apps ("look and feel")

Fiability

Avoid errors and crashing (no error handling when app crashes)

Security

Device holds sensitive personal data
Apps each have their own files directory and run in a sandbox (iOS only)

Speed

App should work on slower devices, with other apps using resources

Events

Interruption

stops execution and jumps to a specific address
- low level
- hardware exceptions

Examples :

division by zero
reset button
process interruption

Event

stops execution and runs a procedure
- higher level
- handled by OS interface

Examples :

click a button
move the cursor
thread finishes a computation

Call-back

Events are handled by "call-backs"

Enable an event
- associate a routing procedure to an existing event
Disable an event
- remove association with procedure (event will not trigger the procedure if it happens)
Wait for an event

If an event is not enabled (or disabled), the OS will consider that there is nothing to be done.

The running program will not be notified of unhandled events occurring.

Swift

iOS applications should be programmed using objective C or Swift (since iOS 8)
Swift is highly recommended (simpler, faster and better supported from now on)
Modern syntax inspired by modern languages
Heavily object-oriented

Developed by Apple and published in 2014
Lighter and more elegant syntax
Better performance with LLVM compiler
Can be tested with playgrounds or read-eval-print loop (REPL)

General Syntax

let a = 10
var b: Int = 12

b += a
let primes = [2, 3, 5, 7, 11, 13]

func isPrime(n: Int) -> Bool {
  for x in 2 ..< n {
    if n % x == 0 {
      return false
    }
  }
  return true
}
var x: Int
x = 12

if isPrime(x) {
  println("\(x) is prime.")
} else {
  println("\(x) is not prime.")
}

Variables are declared with let (immutable) or var (mutable)
Variables are typed but type can be inferred by the compiler
Functions are declared with func, arguments and return values are typed

Optionals

var a: Int? = 12
var b = 10

b += a  // error, a could be nil
if a != nil {
  b += a!  // a is unwrapped
}

a = nil
b = nil  // error

if let aValue = a {
  // conditional unwrapping
  b += aValue
}

Swift introduces “optional” versions of all types

An optional type T? represents a value that can be either nil or a value of type T
Always make sure an optional is not nil before using its value
Optionals can be unwrapped to work with the non nil value

Object Programming

In a “classical” program

program has variables
program calls functions that affect variables

In object-oriented programming

variables contain objects
objects contain their own “sub-variables” called properties
objects carry their own functions called methods
possible to access and modify the properies of each object
possible to call a specific object method (each objects does its own work)

Classes and Instances

class Person {
  var name: String // a property
  var age: Int

  init(name: String, age: Int) {
    self.name = name
    self.age = age
  }

  func greet() {  // a method
    print("Hello, \(name)!")
  }
  func increaseAge(years: Int) {
    age += years
  }

  func ageDifferenceWith(other: Person) -> Int {
    return age - other.age
  }
}

A class is a general description of how objects should be and behave
Classes have properties and methods
An instance is a specific object, that matches the description of the class
Different instances of the same class can have different values of their properties

Inheritance

class Student: Person {
  var school: String?
  var year: Int?

  init(name: String, age: Int, school: String, year: Int){
    self.school = school
    self.year = year
    super.init(name: name, age: age)
  }

  override init(name: String, age: Int) {
    super.init(name: name, age: age)
  }

  override func greet() {
    print("Hi, student \(name)")
  }

  func classDifferenceWith(other: Student) -> Int? {
    if let year = year, oYear = other.year {
      return year - oYear
    }
    return nil
  }
}

Classes can be defined as a refinement of an existing one

the existing class is the parent of the new class (child)
inherits properties and methods from its parent

Methods can be redefined in the child (override)

Creating Objects

To create an object

allocate the necessary memory
initialize the object according to the specifications of the class

These steps are performed by the init function

Objects are removed from memory automatically when nothing points to them (see later section)

Intializers

Classes can have more than one initializer

Some are designated initializers, others are convenience initializers
Designated initializers must call a designated initializer from the parent class
Convenience initializers must call another initializer from the same class (and ultimately a designated initializer)

Deinit

class Player {

  var coinsInPurse: Int

  init(coins: Int) {
    coins = Bank.give(coins)
  }

  func winCoins(coins: Int) {
    coins += Bank.give(coins)
  }

  deinit {
    Bank.get(coins)
  }
}

When an object is removed from memory, its deinit function is called

This function should be used to clean up the objects or data owned by the removed object

deinit is called automatically, and should never be called manually

Model

class Player {
  var cards: [Card]
  var game: Game
  var points: Int
  var isTurnPlayer: Bool

  init(...) {
    ...
  }

  func playCard(card: Card) {
    ...
  }

  func endTurn() {
    ...
  }

  func draw(numberOfCards: Int) {
    ...
  }

  ...
}

In iOS, the model is represented by the data object classes

the model can be stored in the terminal memory in different forms (Core Data, archiving, NSUserDefaults)
organization of the data structures with classes and attributes

View

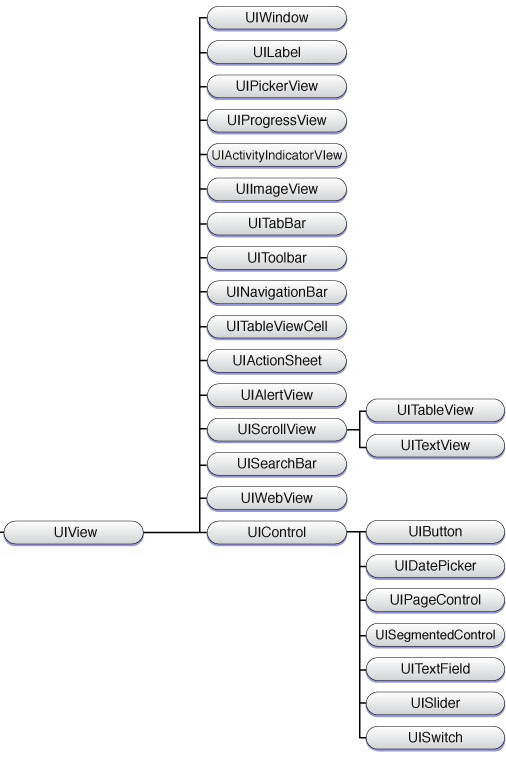

Cocoa Touch (iOS UI Framework) defines a class UIView

all views should inherit from UIView
many subclasses are already defined
developers can subclass any existing class to add specific behavior

Note : the elements added to the Storyboard are subclasses of UIView

UIView

To create a user interface

create a view hierarchy
associate specific code (in the controller) to the possible events that the view elements can react to

using the existing subclasses ensures a uniform experience for the users across apps

What is a view ?

A rectangle

in which it is possible to draw
that reacts to events
contained in a window (UIWindow)

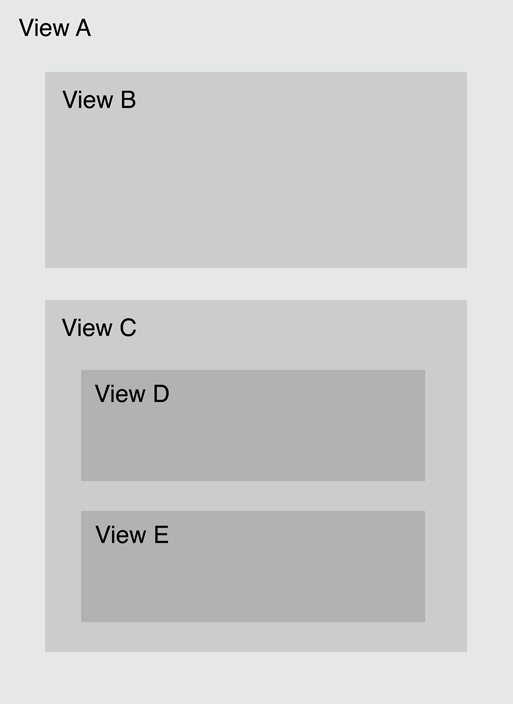

View hierarchy

each view is placed in a superview
a view can have any number of subviews
lower level views are drawn on top of higher level

subviews of a same view are drawn one after the other
views can have transparent elements

Position

let labelFrame = CGRect(x: 20, y: 50, width: 300, height: 50)
let label = UILabel(frame: labelFrame)
label.text = "Hello"
view.addSubview(label)

label.center = CGPoint(x: 170, y: 200)

view is positioned relatively to its parent view :

the frame is a CGRect that defines the position and size of a view relative to its parent
the center is a CGPoint that positions the view without changing its size
the bounds is a CGRect describing the frame of the view in its own coordinates. Usually origin is (0, 0)

UIView Hierarchy

var superview: UIView?
var subviews: [UIView]
var window: UIWindow?

func addSubview(UIView)
func bringSubview(toFront: UIView)
func sendSubview(toBack: UIView)
func removeFromSuperview()
func insertSubview(UIView, at: Int)
func insertSubview(UIView, aboveSubview: UIView)
func insertSubview(UIView, belowSubview: UIView)
func exchangeSubview(at: Int, withSubviewAt: Int)
func isDescendant(of: UIView) -> Bool

The UIView class has methods to manipulate the hierarchy
The superview owns its subviews

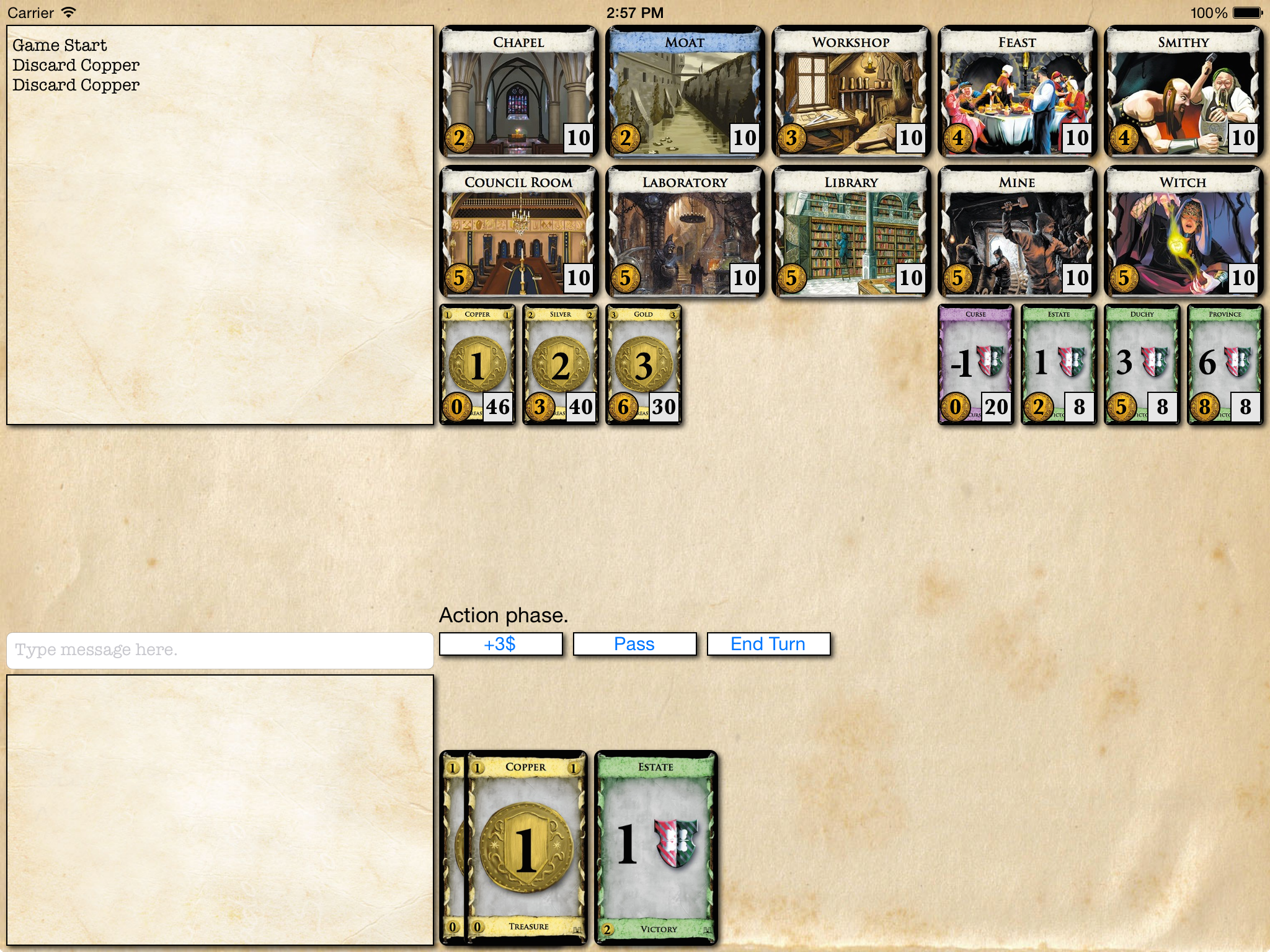

Example : Dominion

GameView
  LogView
    UITextView
  StacksView
    KingdomCardsView
      StackView (x10)
        UIImage (background)
        UILabel (cost)
        UILabel (remaining)
    TreasureCardsView
      StackView (x3)
        UIImage (background)
        UILabel (cost)
        UILabel (remaining)
    VictoryCardsView
      StackView (x4)
        UIImage (background)
        UILabel (cost)
        UILabel (remaining)
  PlayerView
    ChatView
      UITextInput
      UITextView
    ButtonsView
      UILabel (instruction)
      UIButton (x3)
    HandView
      CardView (x3)
        UIImage

About the Views

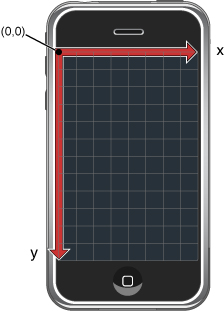

Cartesian coordinates system

(0, 0) at the top-left corner
coordinates are in points (not pixels)
handles screen density differences seamlessly

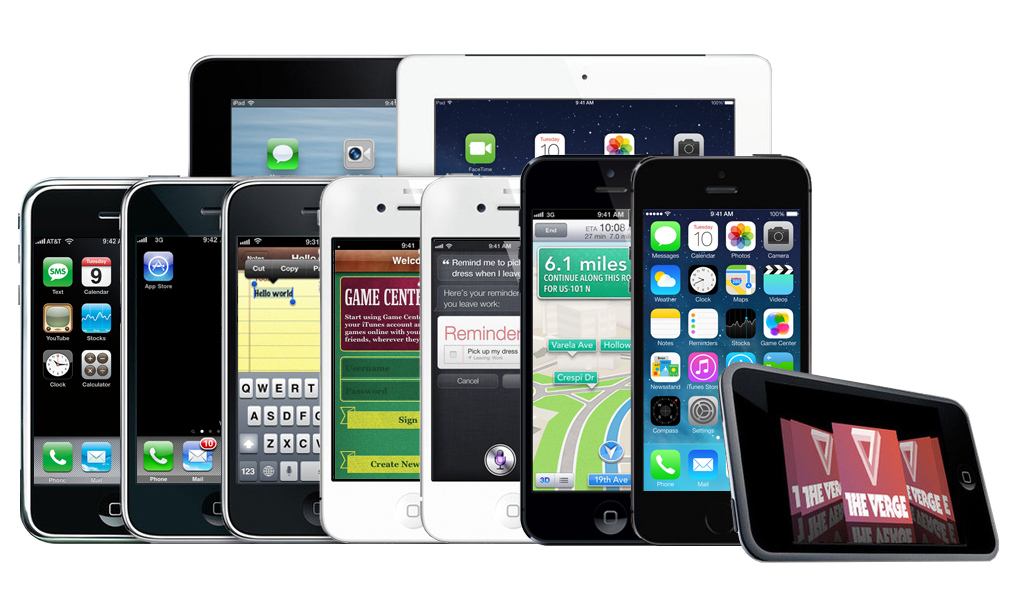

iPhone/iPod 3.5" (1 to 4) : 320 × 480
iPhone/iPod 4" (5) : 320 × 568
iPhone 4.7" (6 to 8) : 375 × 667
iPhone 5.5" (6+ to 8+) : 414 × 736
iPhone X : 375 × 812
iPad/iPad mini : 768 × 1024
iPad Pro 10.5" : 834 × 1112
iPad Pro 12.9" : 1024 × 1366

Create a View

Create a class that inherits from UIView

If necessary, define the method drawRect
If the view must be refreshed, use setNeedsDisplay

See example : Multiplication

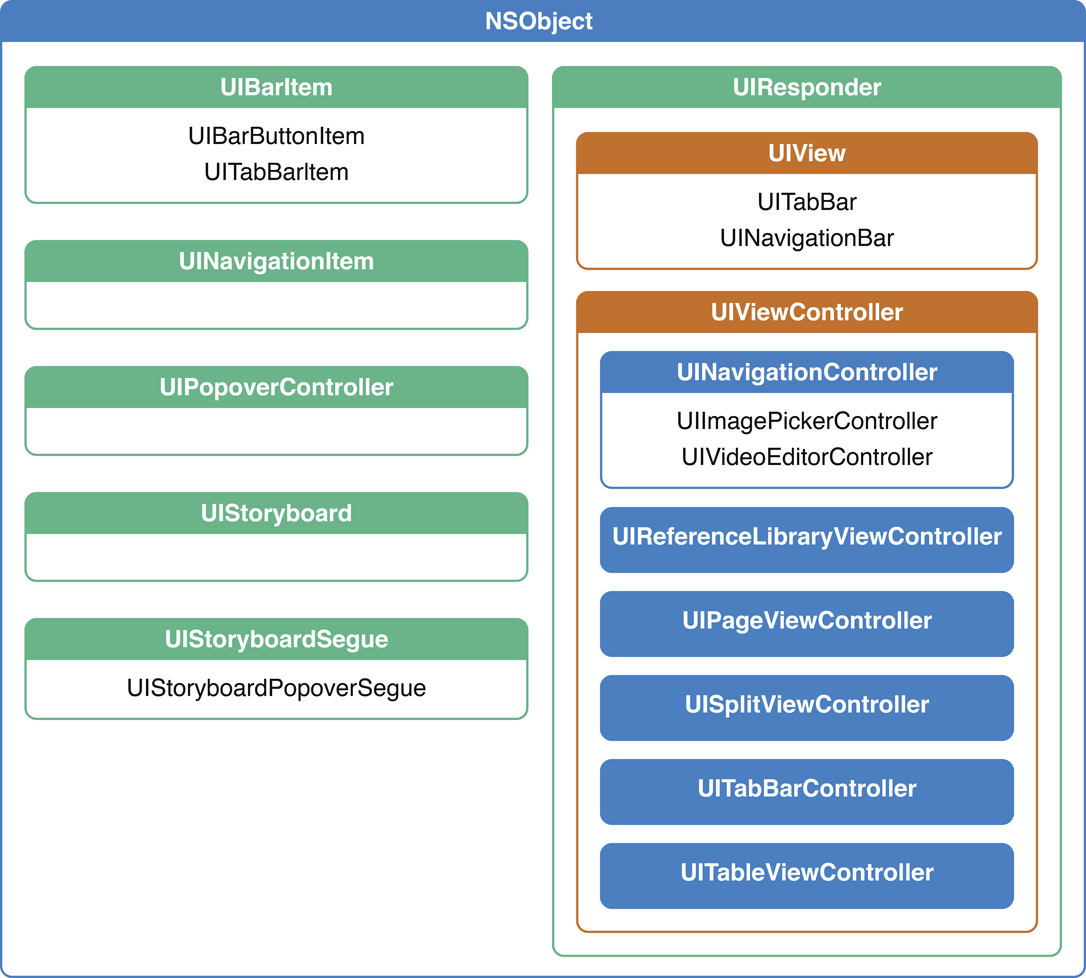

UIViewController

View controllers are objects that manage a view hierarchy
The class UIViewController implements view controllers
Each controller has a single main view
View controllers are responsible for loading, displaying and releasing the view when needed
View controllers also (should) manage the events that take place in the view

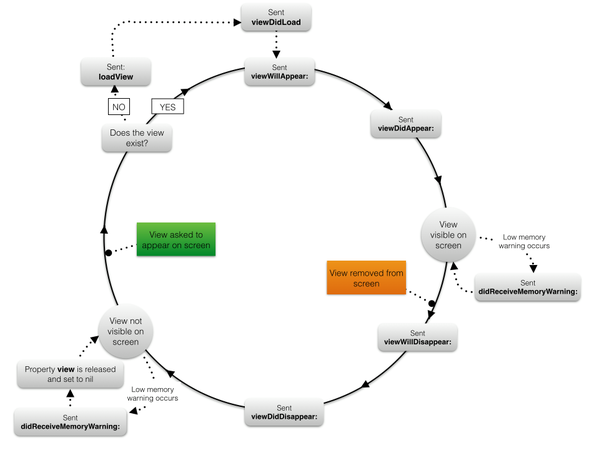

View Controller Cycle

Important methods :

init : initialization of the view controller
loadView, viewDidLoad : creation of the view
viewWillAppear, viewDidAppear : the view is displayed on screen
viewWillDisappear, viewDidDisappear : the view is removed from screen

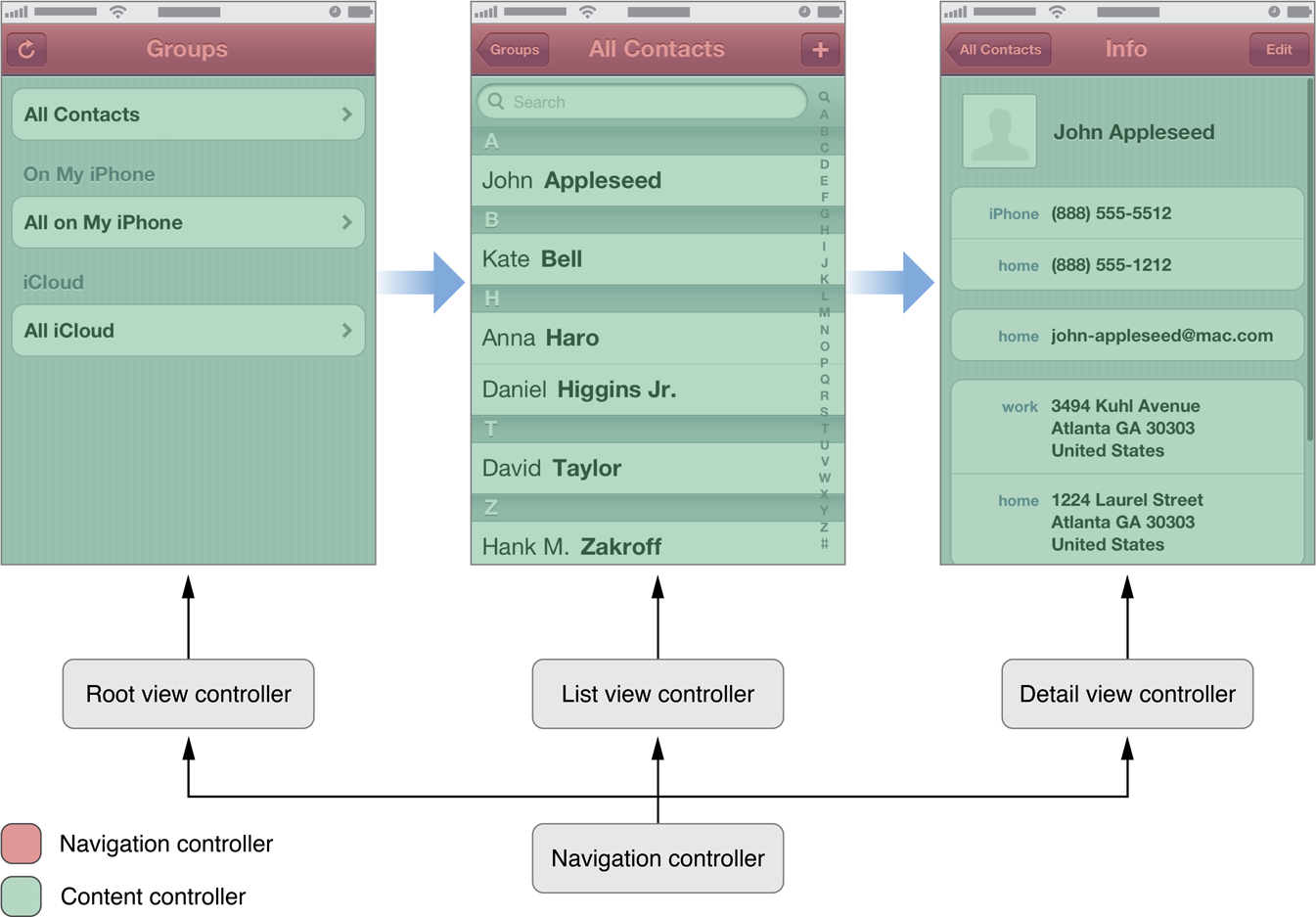

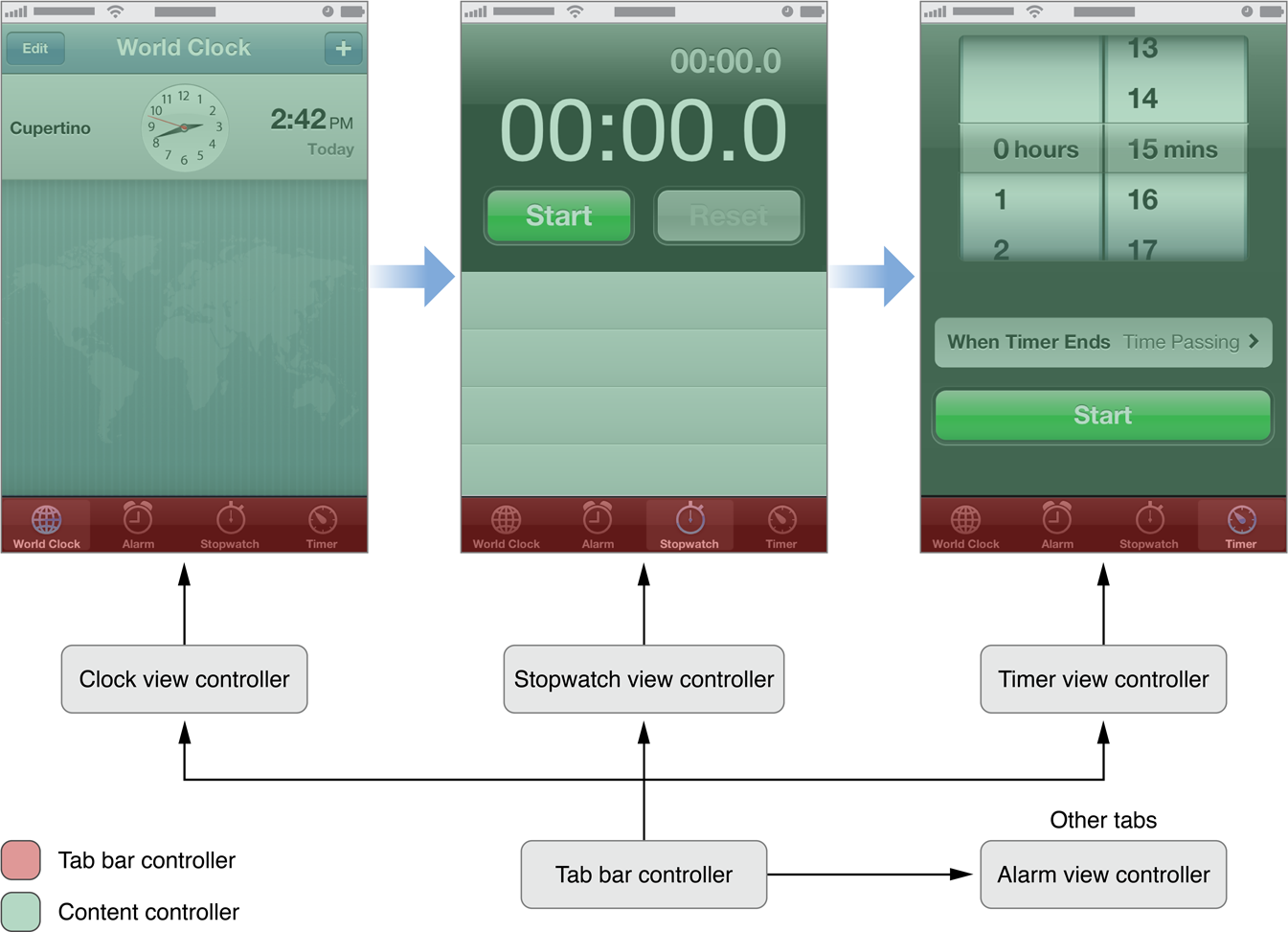

Kinds of View Controllers

Content view controllers display content

simplest view controller
manages one view hierarchy
a view hierarchy is usually managed by a single content VC

examples : table view controller, most user-made view controllers

Container view controllers arrange content of other view controllers

contains content owned by other view controllers
manages a list of other view controllers (children)

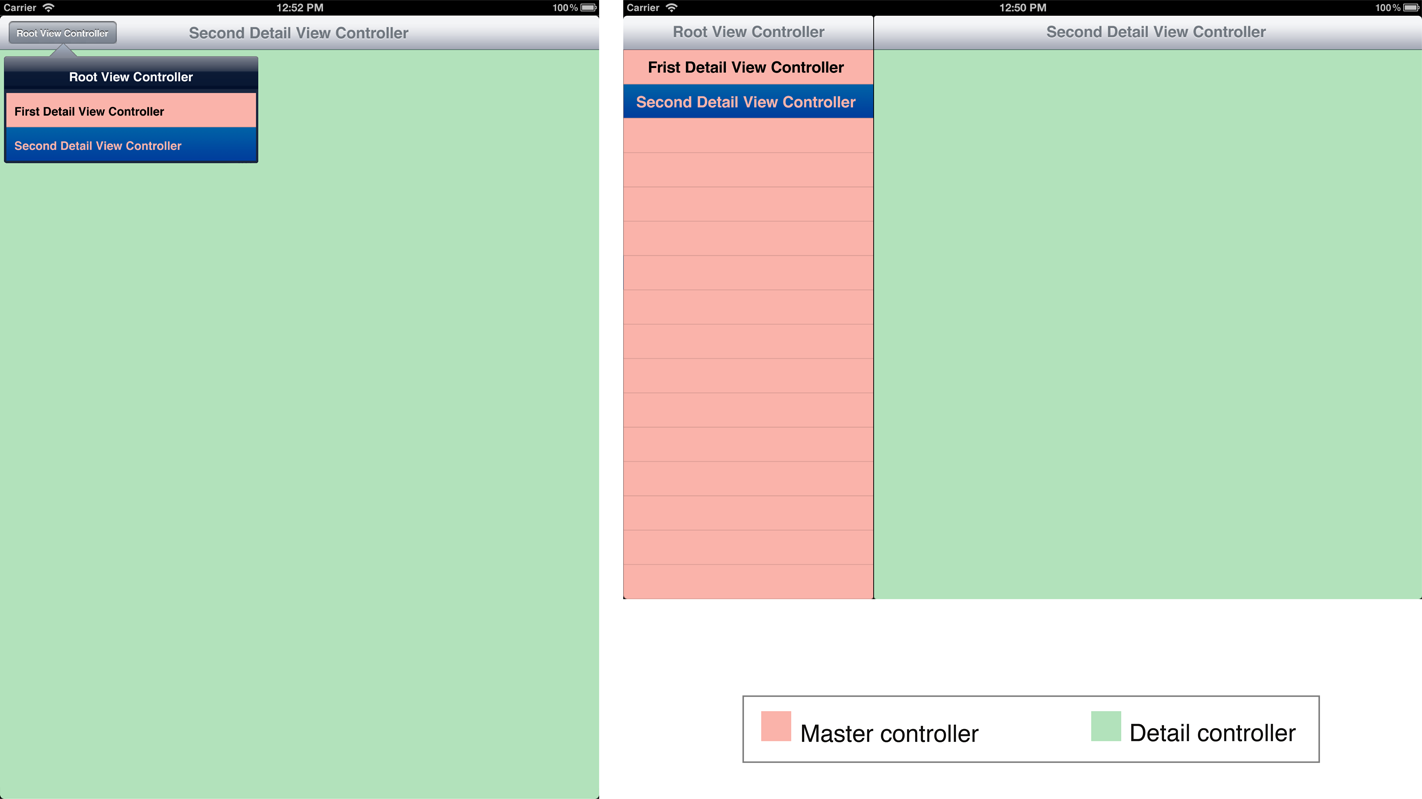

examples : navigation controller, tab bar controller, split view controller

Nested Content VC

let subVC = SomeViewController()

addChildViewController(subVC)
subVC.didMoveToParentViewController(self)
view.addSubview(subVC.view)

Most of the time one content view controller is sufficient

It is possible to nest content view controllers when necessary

create the sub controller
add it as a child to the main controller
notify the child that it has been added to the parent
add the child's view to the parent's view

Create a Controller

var view: UIView!
var isViewLoaded: Bool

func loadView()
func viewDidLoad()

func viewWillAppear(Bool)
func viewDidAppear(Bool)
func viewWillDisappear(Bool)
func viewDidDisappear(Bool)
func viewWillLayoutSubviews()
func viewDidLayoutSubviews()
func updateViewConstraints()
...

Create new class that inherits from UIViewController
Override relevant methods to define management of view
Define when the controller should be loaded

Initialization

The UIViewController class defines two possible initializers

init(nibName nibName: String?, bundle nibBundle: NSBundle?) is used when creating a new view controller programmatically
init(coder aDecoder: NSCoder) is used when the view controller is automatically created by iOS (from a storyboard for instance)

Warning : The view is not loaded at the initialization of the controller

Accessing view elements will crash the application
Initialization of the view should be done in viewDidLoad and viewDidAppear

Initialization

Simplest way (with empty view) :

 let viewController = UIViewController(nibName: nil, bundle: nil)

When subclassing (with empty view) :

class MyViewController: UIViewController {
  init() {
    super.init(nibName: nil, bundle: nil)
  }
}

If using a Nib file (view is created with Nib contents) :

class MyViewController: UIViewController {
  init() {
  super.init(nibName: "nameOfNibFile", bundle: nil)
  }
}

Switching Controllers

let vc = MyViewController()
UIApplication.sharedApplication().keyWindow!.
  rootViewController = vc

let vc = MyViewController()
presentViewController(vc, animated: true, completion: nil)
dismissViewControllerAnimated(true, completion: nil)

Example : SwitchController

// create a navigation controller and its
// root controller
let vc = ViewController()
let nc = UINavigationController(rootViewController: vc)
window.rootViewController = nc
// create a new controller an push it on top
let vc2 = ViewController()
navigationController?.pushViewController(vc2, animated: true)
// pop the top controller (thus recovering
// the previous one)
navigationController?.
  popViewControllerAnimated(true)

Example : Navigation Controller

There are many ways to switch from a view controller to another one (and change the displayed view)

changing the root controller of the application window (should be avoided)
presenting a new controller
using a navigation controller

Controller transitions can be defined in the Interface Builder (storyboards)

Touch and Motion

There are 4 kinds of basic events to interact with the UI :

touch events

single or multiple touches on the screen tap, double-tap, move, etc.

motion events (iOS 3)

detected by the accelerometer
and gyroscope
shake, rotation, acceleration...

Remote control events (iOS 4)
Presses events (iOS 9)

The class of objects that are prepared to handle such events is UIResponder

Subclasses include UIApplication, UIWindow, UIView and UIViewController

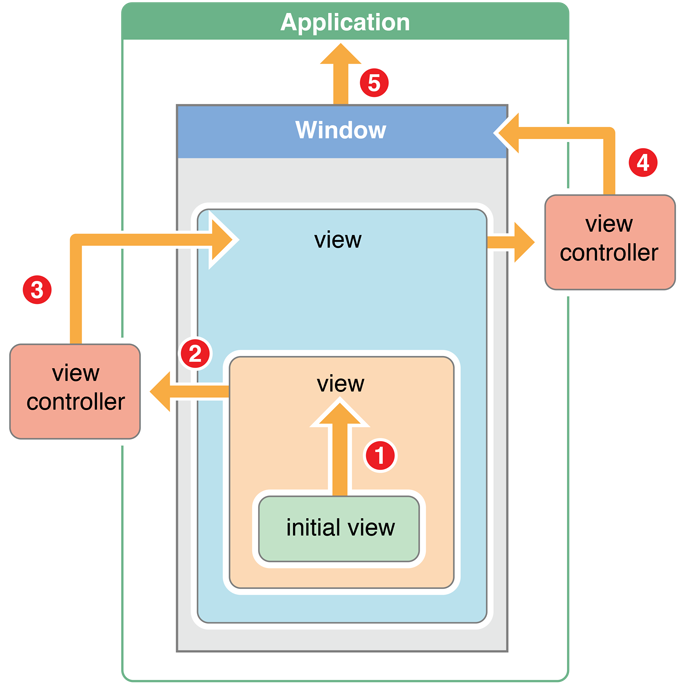

The Responder Chain

When an event is detected it is sent to a specific responder

for a touch, the view where it happened
for another event, the first responder

The event goes through the responder chain until a responder handles it

from a view to its super view
from a top view to its controller
from a controller to the super view of its view
from the main controller to the window, and the application

Hit Test

Returns where a touch occurred

recursive calls to hitTest:withEvent:
if the touch is in a view, all its sub views are tested
if a touch is out of the bounds of a given view, its subviews are not tested
return the lowest view in the hierarchy that contains the point of touch

Only the point where the touch started counts

UIEvent

var timestamp: NSTimeInterval
var type: UIEventType
var subtype: UIEventSubtype
func allTouches() -> Set?
func touchesForView(_ view: UIView) -> Set?
func touchesForWindow(_ window: UIWindow) -> Set?

UIEvent is the class of objects created when an event occurs

an UIEvent object has a sub-type (none, motion or possible remote control events)
touch events contains a set of UITouch objects
all events have a time stamps that corresponds to the time when the event was created

UIEventSubtype

enum UIEventSubtype : Int {
  case None
  case MotionShake
  case RemoteControlPlay
  case RemoteControlPause
  case RemoteControlStop
  case RemoteControlTogglePlayPause
  case RemoteControlNextTrack
  case RemoteControlPreviousTrack
  case RemoteControlBeginSeekingBackward
  case RemoteControlEndSeekingBackward
  case RemoteControlBeginSeekingForward
  case RemoteControlEndSeekingForward
}

Shake

UIKit detects 3 events associated with a shake

motionBegan(_:with:) when a shake motion begins
motionEnded(_: ith:) when a shake motion ends
motionCancelled(_:with:) when a shake motion is cancelled by another event (app becomes inactive, view disappears, etc.)

clean state after motionBegan

The motion for a shake is UIEventSubtypeMotionShake

Touch

There are 4 methods to handle touch events

touchesBegan(_:with:)
touchesMoved(_:with:)
touchesEnded(_:with:)
touchesCancelled(_:with:)

The first parameter of each method contains the set of UITouch objects that are relevant to the method (began, moved, ended or cancelled)

Gesture Recognizers

Some specific gestures can be recognized automatically :

single / multiple tap
pinch / zoom
rotate
swipe
pan
screen-edge pan
long press

The class UIGestureRecognizer (and its subclasses) handle such events

Gesture Recognizers

let tapRecognizer = UITapGestureRecognizer()
tapRecognizer.numberOfTapsRequired = 2
tapRecognizer.addTarget(self, action: "handleTap:")
tapRecognizer.delegate = self
view.addGestureRecognizer(tapRecognizer)

Warning : the view must have enabled the user interaction

view.userInteractionEnabled = true

To recognize a gesture :

create a gesture recognizer
configure the recognizer
add a method as target for the recognizer
(optional) set the delegate
add the recognizer to a view

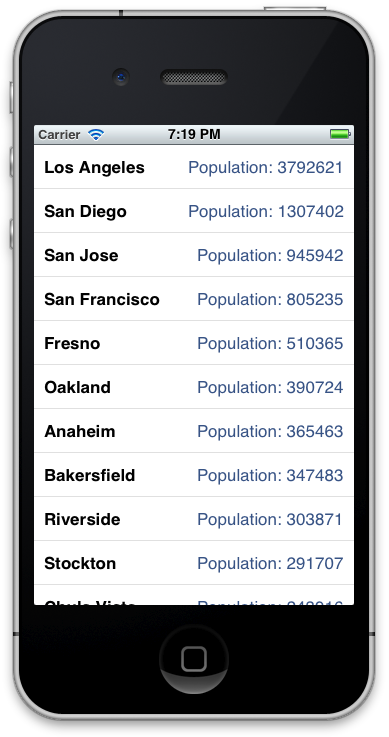

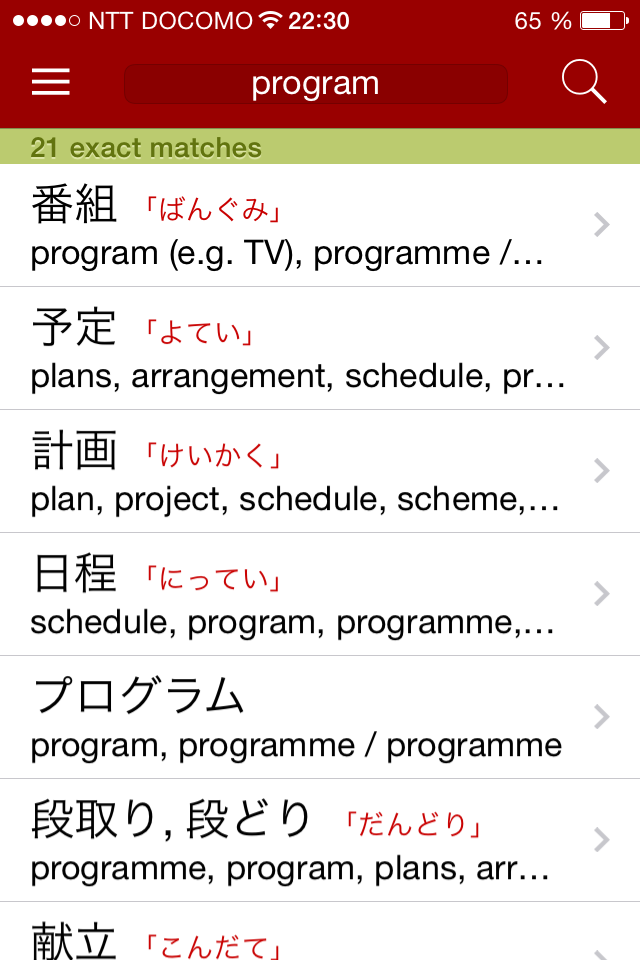

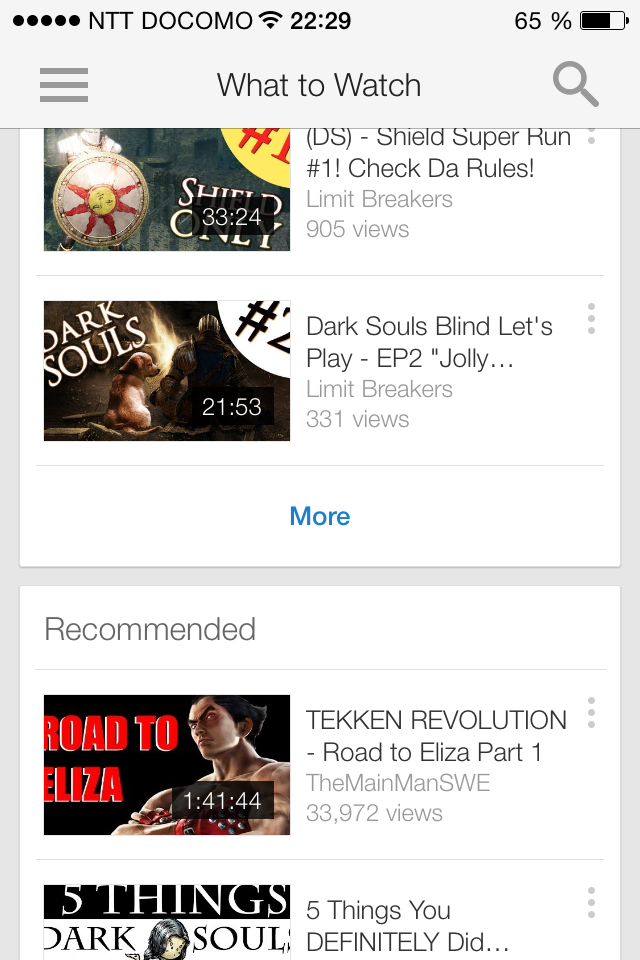

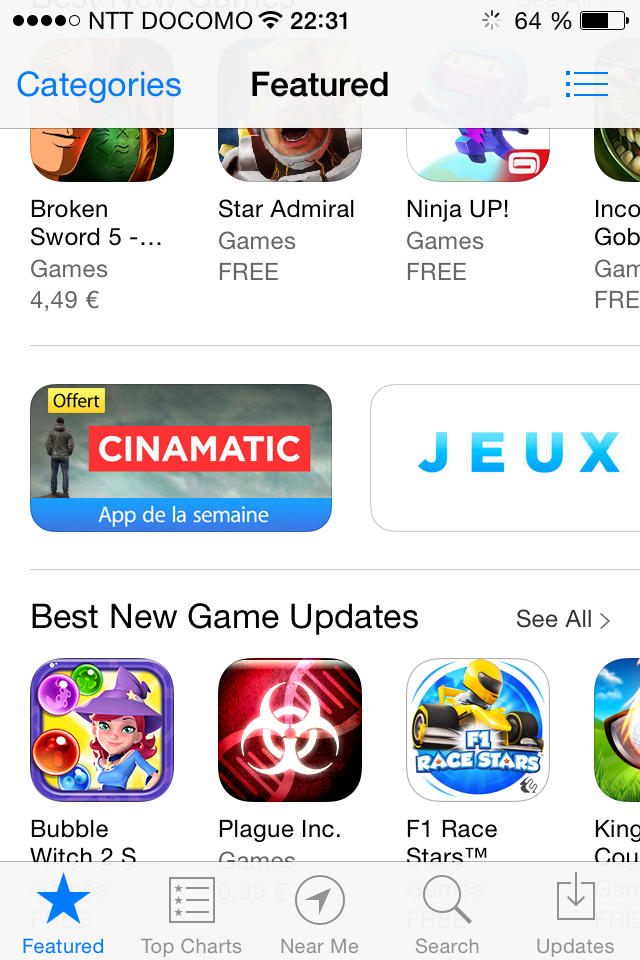

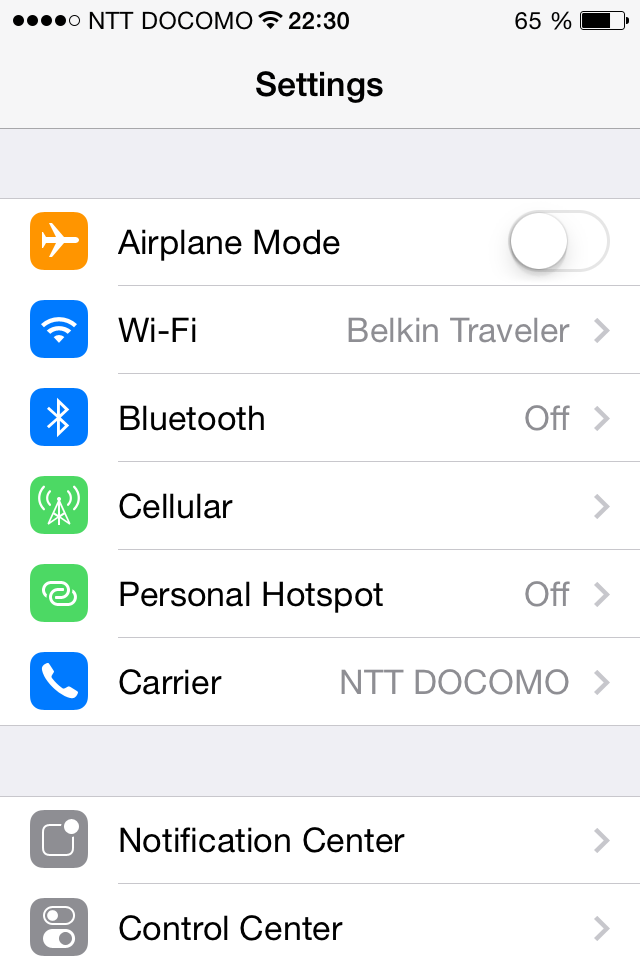

Everything in a Table

Representation of data

One column, many lines (cells)
Separate sections
Vertical scrolling
Efficient memory management

very useful for very large data sets

Used by almost all apps

Table is divided in sections
Table can have header and footer
Sections can have header and footer
Data elements represented by a cell

All of these elements are fully customizable views

MVC Structure

Table views are a prime example of MVC

Model : data to fill the table (represented by an app-specific class)
View : table view, with a cell per data element
Controller : usually a subclass of UIViewController

gets the data from the model to make the cells
updates the table view if the model changes
reacts to events on the table view and updates the model accordingly (eg. deletion of a cell)

The view controller implements functions to act as

UITableViewDataSource
UITableViewDelegate

Data Source

// methods in UITableViewDataSource
tableView(_:cellForRowAt:) (*)
numberOfSections(in:)
tableView(_:numberOfRowsInSection:) (*)
sectionIndexTitles(for:)
tableView(_:sectionForSectionIndexTitle:at:)
tableView(_:titleForHeaderInSection:)
tableView(_:titleForFooterInSection:)

(*) required methods

The data source must be able to answer questions such as :

how many sections ?
how many cells in section 3 ?
what is in the 4th cell of section 2 ?
what is the header for section 1 ?

Making a Cell

Implement method tableView(_:cellForRowAt:)
Returns a UITableViewCell
Argument is an NSIndexPath, that locates a cell by its section and row

Reuse Cells

Tight memory management

Allocate displayed cells
Cells out of display marked as unused (can be released at any time)
When displaying new cell

take an allocated cell out of display
reuse cell by changing relevant fields only

Access to cells should always use this system

func tableView(_: UITableView, cellForRowAtIndexPath indexPath: NSIndexPath) -> UITableViewCell {
  let cell = tableView.dequeueReusableCellWithIdentifier("normalCell", forIndexPath: indexPath)
  cell.textLabel?.text = "new label"
  return cell
}

Modification of a Table

tableView(_:commit:forRowAt:)
tableView(_:canEditRowAt:)
tableView(_:canMoveRowAt:)
tableView(_:moveRowAt:to:)

The user interacts with the table view

insertion of a cell
deletion of a cell
moving a cell

User interaction calls functions from the UITableViewDataSource protocol

Controller must make changes to data

ARC

Swift uses Automatic Reference Counting (ARC) to manage objects in memory

associate a counter to each object in memory
count how many properties, constants and variables refer to the object
whenever counter reaches 0, the object is removed from memory
reference counting only applies to instances of classes (reference types)

Most of the time, ARC works fine automatically

Reference Cycle

class Person {
  var apartment: Apartment?
  ...
}
class Apartment {
  var tenant: Person?
  ...
}

var john = Person()
var apt = Apartment()
john.apartment = apt
apt.tenant = john
john = nil
apt = nil
// neither object is deinitialized

Problem : sometimes two (or more) objects refer to each other and are not removed from memory

Reference Cycle

john = Person(...)
apt = Apartment(...)

john = Person(...)
apt = Apartment(...)
john.apartment = apt
apt.tenant = john

john = Person(...)
apt = Apartment(...)
john.apartment = apt
apt.tenant = john
john = nil
apt = nil

Strong, Weak and Unowned

class A {
  var x: Int          // strong
  weak var y: Int?    // weak
  unowned var z: Int  // unowned
  ...
}

To break reference cycles, we use weak or unowned references

weak references for optional types

reference counter is not incremented
if referenced object is deinitialized, it is replaced by nil

unowned references for other types

does not increment counter
should always have a value
causes error if accessed after deinitialization

Breaking the Cycle

john = Person(...)                  class Apartment {
apt = Apartment(...)                  weak var tenant: Person?
john.apartment = apt                  ...
apt.tenant = john                   }

john = Person(...)                  class Apartment {
apt = Apartment(...)                  weak var tenant: Person?
john.apartment = apt                  ...
apt.tenant = john                   }
apt = nil

john = Person(...)                  class Apartment {
apt = Apartment(...)                  weak var tenant: Person?
john.apartment = apt                  ...
apt.tenant = john                   }
apt = nil
john = nil

Device Motion

The iDevices contain motion detectors that can measure

acceleration
rotation
magnetic fields
altitude

CoreMotion framework

Main class is CMMotionManager

Device Motion

To react to motion

instantiate a CMMotionManager object
configure the motion manager
(optional) define a handler for measure updates
start updates for the desired measure
stop updates when not needed

CoreMotion is independent from UIKit

No events, no responder chain
Everything goes through the motion manager

data can be

pulled : app queries the manager when needed
pushed : manager sends updates automatically to the handler

Cannot be tested on simulator

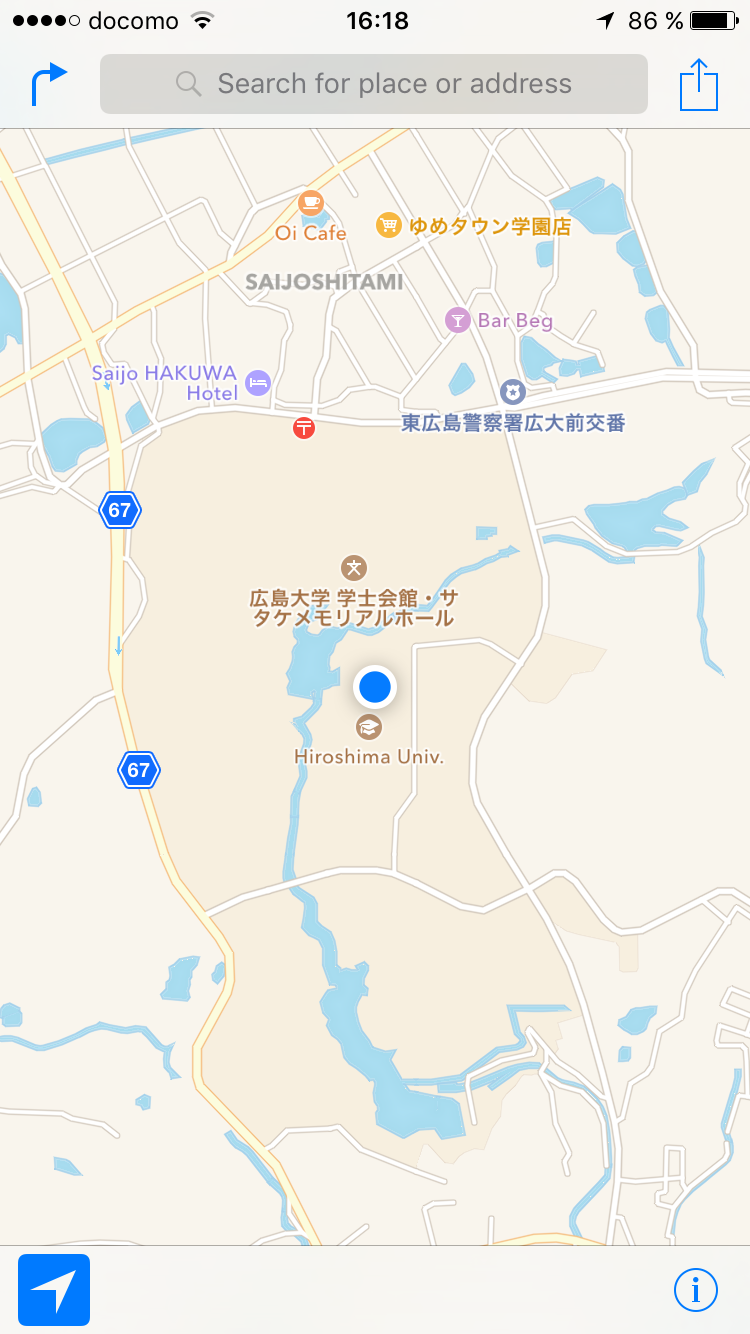

Geolocation

iOS devices can track geographic location

using GPS technology, Wi-Fi or cellular networks
compute current latitude and longitude of device
can obtain orientation (compass) for devices with magnetometer
interface with MapKit for displaying geographic information

CoreLocation framework

use CLLocationManager class

Geolocation

Similar to motion events

instantiate CLLocationManager
configure manager
set delegate
start recording location
set handler for location update
stop recording when not needed

See CLLocationManagerDelegate protocol for possible interaction with the manager

Using location services requires user authorization

ask for authorization on first use
two levels of authorization : foreground only or foreground and background

Possible to define regions and react to user entering/leaving these regions
Significant location change service saves battery by sending updates only when location changes significantly

Notification Center

Idea : broadcast information between elements across your app

Works as a bulletin board
Any function can post notifications to notification center
Any object can observe for a specific notification
When notification is sent, all observers are notified and execute a call-back

Part of the Foundation framework

Use NotificationCenter class and related elements

Notification Center

Default notification center : NotificationCenter.default

Many notifications already defined by API

Notification has

name (Notification.Name)
sending object (AnyObject)
optional dictionary for more data

Observers can register for notifications by name and/or sender
Notification call-backs can be run on separate thread

Notification Center (Example)

// declare a new notification name
extension Notification.Name {
  static let specialEvent = Notification.Name("Special Event")
}

// post a new notification
NotificationCenter.default.post(
  name: .specialEvent,
  object: self,
  userInfo: nil)

// register to a given notification
NotificationCenter.default.addObserver(
  self,
  selector: #selector(specialAction(notification:)),
  name: .specialEvent,
  object: nil)

// setup a handler
func specialAction(notification: NSNotification) {
  println("A special event occurred!")
}

Grand Central Dispatch

Sometimes, some tasks should be executed asynchronously (in parallel)

long computations that shouldn't slow down UI
wait for a special event (ex: semaphore)
run tasks in parallel

Tasks are organized in queues

Different queues can have different priorities and properties
Implements threads

Part of the Foundation framework

The whole set of functions is denoted as Grand Central Dispatch (GCD)

Grand Central Dispatch

To dispatch an asynchronous task

get or create queue
call async on the queue with code to be executed

Queues can be

serial : tasks are run one after the other
concurrent : tasks execute in parallel

Some queues are already defined

main queue (serial) : created when app starts. Only queue that should modify the UI
global (concurrent) queues :

userInteractive
userInitiated
default
utility
background
unspecified

Grand Central Dispatch (Example)

// create a queue
let queue = DispatchQueue(label: "uniqueID")
let queue = DispatchQueue(label: "uniqueID", qos: .userInitiated)
// use existing
let bgQueue = DispatchQueue.global(qos: .global)
let mainQueue = DispatchQueue.main

// dispatch to queue
queue.async {
  // some code
}

// background task with UI action
bgQueue.async {
  // do some complicated task in the background
  DispatchQueue.main.async {
    // do a simple task on the UI when the previous task
    // finishes
  }
}

Persisting Data

There are many options available to store persistent data on an iDevice

UserDefaults : simplest solution, stores simple information
NSCoding : intermediate solution, stores complex objects to file
CoreData : most complete solution, stores objects to a database
other solutions : saving on iCloud or online server

UserDefaults

To read or write values :

get a reference to the shared instance UserDefaults.standard
get or set values for a given key

Associate values to keys (Strings)

Usually used for storing default values or user preferences

Can store

Data
String
Number
Date
Array
Dictionary

Very simple to use, but limited

NSUserDefaults (Example)

// get a reference to the UserDefaults
let defaults = UserDefaults.standard

// set the value for key "userNameKey"
defaults.set("Guybrush Threepwood", forKey: "userNameKey")

// get the value for key "userNameKey"
let name = defaults.string(forKey: "userNameKey")
println(name!)

	CoreData	NSCoding
Entity Modeling	Yes	No
Querying	Yes	No
Speed	Fast	Slow
Serialization Format	SQLite, XML, or NSData	NSData
Migrations	Automatic	Manual
Undo Manager	Automatic	Manual

	CoreData	NSCoding
Persists State	Yes	Yes
Pain in the Ass	Yes	No

NSCoding

The NSCoding protocol requires two methods

encode(with coder: NSCoder) describes how to convert the object into an NSData object (byte sequence)
init(coder decoder: NSCoder) describes how to create the object from an NSData object

Classes NSKeyedArchiver and NSKeyedUnarchiver perform the conversions

works if all archived properties also conform to NSCoding

NSCoding

// define a class and describe how to archive/unarchive it
class Person: NSObject, NSCoding {
  let name: String
  let age: Int
  init(name: String, age: Int) {
    self.name = name
    self.age = age
  }
  required init?(coder decoder: NSCoder) {
    self.name = decoder.decodeObject(forKey: "name") as! String
    self.age = decoder.decodeInteger(forKey: "age")
  }

  func encode(with coder: NSCoder) {
    coder.encode(name, forKey: "name")
    coder.encode(age, forKey: "age")
  }
}

var people = [Person]()
people.append(Person(name: "Sherlock Holmes", age: 25))
people.append(Person(name: "Mycroft Holmes", age: 32))

// encode objects and save data
let encodedData = NSKeyedArchiver.archivedData(withRootObject: people)
UserDefaults.standard.set(encodedData, forKey: "people")

// retrieve data and decode into objects
let data = UserDefaults.standard.data(forKey: "people")!
let myPeopleList = NSKeyedUnarchiver.unarchiveObject(with: data) as! [Person]

2D Graphics

There are two main options for managing and animating 2D objects

CoreAnimation framework

basic animation on most view properties (position, size, color, etc.)
drawing methods on view using layers

SpriteKit framework

sprite and image management
animations and sequences of actions (combines transformations and events on view elements)
2D physics engine available (collision detection, gravity, inertia, etc.)

You could also redo everything by hand on UIView by redefining drawRect...

An Introduction toiOS Development

A Word About iOS

iOS

Version History

Fragmentation

Distribution

About this Lecture

Mobile Development

Generalities

Mobile Terminals

Architecture

iOS vs. Android

Cross-Compilation

Constraints

Other Constraints

First Example

Workflow

Events

Call-back

Example

A Short Introductionto Swift

Swift

General Syntax

Optionals

Object Programming

Classes and Instances

Inheritance

Creating Objects

Intializers

Illustration

Deinit

Graphical User Interface

Model View Controller

Model View Controller

Model

View

UIView

Position

UIView Hierarchy

Example : Dominion

About the Views

Create a View

UIViewController

Classes Hierarchy

View Controller Cycle

Kinds of View Controllers

Nested Content VC

Navigation Controller

Tab Bar Controller

Split View Controller

Create a Controller

Initialization

Initialization

Example

Switching Controllers

Responding to Events

Touch and Motion

The Responder Chain

Hit Test

UIEvent

UIEventSubtype

Shake

Touch

Example

Gesture Recognizers

Gesture Recognizers

Example

Focus on Table Views

Objective

Examples

Everything in a Table

MVC Structure

Data Source

Making a Cell

Cell Management

Reuse Cells

Modification of a Table

Delegate

Memory Management

ARC

An Introduction to
iOS Development

A Short Introduction
to Swift

Other Interesting
Things
